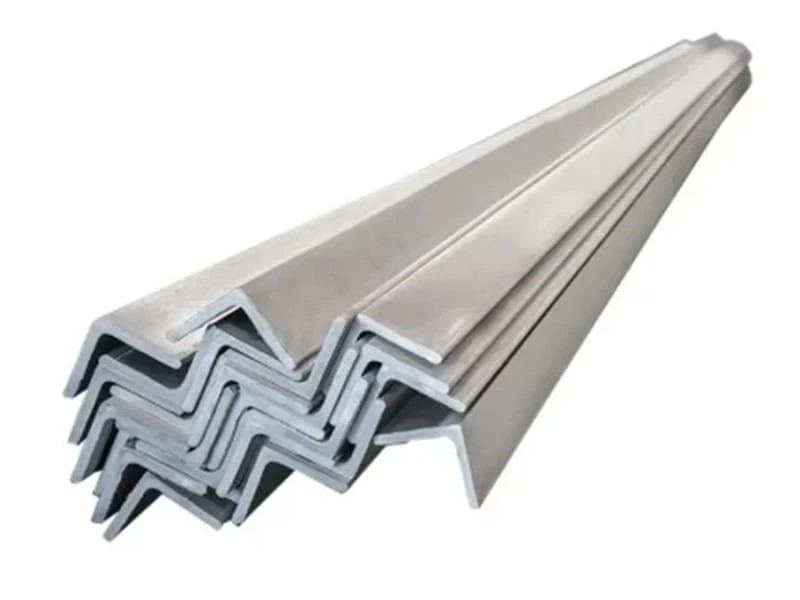

Equal Angles

Standard Sectional Dimensions		Section Area	unit Weight
H*B	T	A
mm*mm	mm	cm2	kg/m	kg/6m
40*40	4	2.336	1.83	10.98
50*50	5	4.802	3.77	22.62
50*50	6	5.644	4.43	26.58
60*60	5	5.802	4.55	27.5
60*60	6	6.91	5.4	32.5
65*65	5	6.367	5	30
65*65	6	7.527	5.91	35.5
65*65	8	9.761	7.66	46
70*70	6	8.127	6.38	38.5
75*75	6	8.727	6.85	41
80*80	6	9.23	7.32	43.9
90*90	7	12.22	9.59	57.6
90*90	10	17	13.3	80
100*100	7	13.62	10.7	64
100*100	10	19	14.9	89.5
120*120	8	18.76	14.7	88
120*120	11	25.37	19.9	119.5
120*120	12	27.54	21.6	130
130*130	9	22.74	17.9	107.4
130*130	12	29.76	23.4	140.5
150*150	12	34.77	27.3	164
150*150	15	42.74	33.6	202
150*150	19	53.38	41.9	251.5
175*175	12	40.52	31.8	191
175*175	15	50.21	39.4	236.5
200*200	15	57.75	45.3	272
200*200	20	76	59.7	358
200*200	25	93.75	73.6	442
250*250	25	119.4	93.7	562
250*250	35	162.6	128	768

Section
